Name: ATEM 24 channel Tally Interface
Brand: NVT360
SKU: ATEM24T
Price: 1415.0 USD
Availability: InStock

ATEM 24 channel Tally Interface

Product Details

Marca: NVT360

⚠️ Important Notice

The listed price includes only the interface unit an 4 lights, required to connect your ATEM switcher to your existing CCU system.

If you wish to add Tally lights ( 6 / 8 / 10 / 12 channels), please contact us for a customized quote including the base system and the number of lights you need.

🔴 24-Channel Professional Tally System – 1U Rack Mount

Dual Ethernet ports, fully compatible with ATEM protocol
Original GPI and Tally interface chips for maximum stability

Enhance your live production workflow with this high-performance Tally system, designed for professional broadcast environments. Its compact 1U rack design and powerful integration capabilities make it ideal for studios, OB vans, and live event productions.

Key Features

This system features 24 dual-color (red/green) large monitoring lights, allowing clear and instant visual identification of each camera or source status.

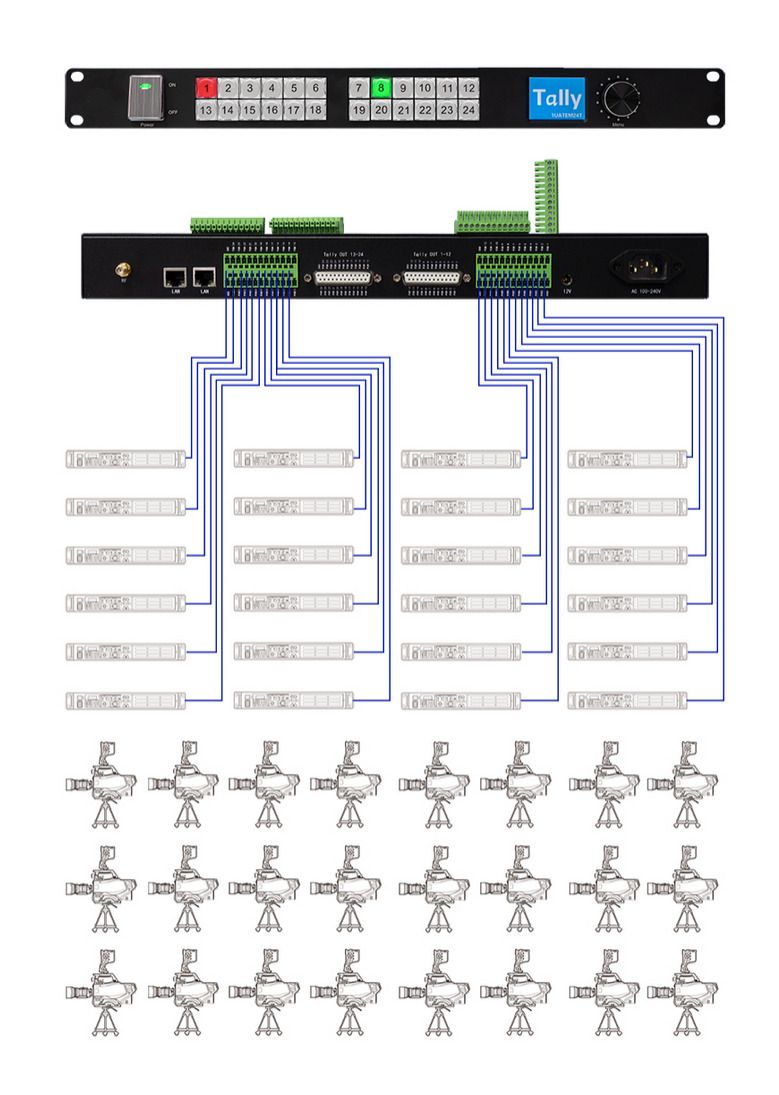

48 independent relay outputs (24 red + 24 green)

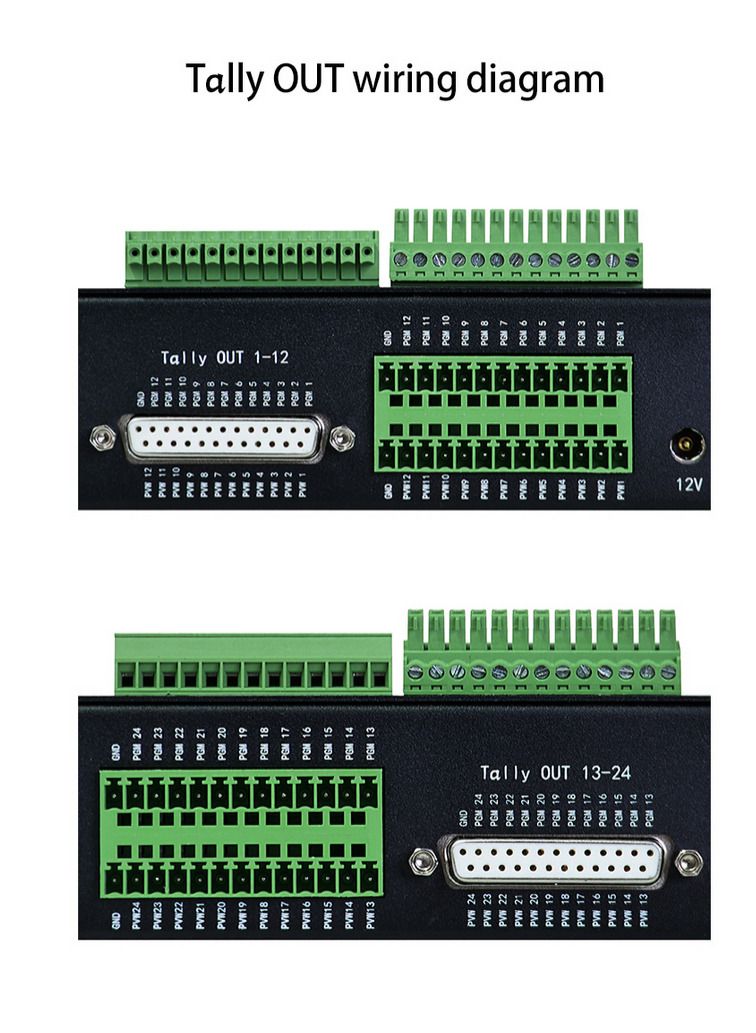

Professional connectivity via dual DB25 and 48-pin Phoenix connectors
Full compatibility with ATEM switchers for seamless integration
Expandable up to 48 channels or multiple units linked together

⚙️ Design & Operation

Built with a high-precision CNC aluminum 1U rack chassis, this unit is ideal for professional installations and supports multiple devices working simultaneously.

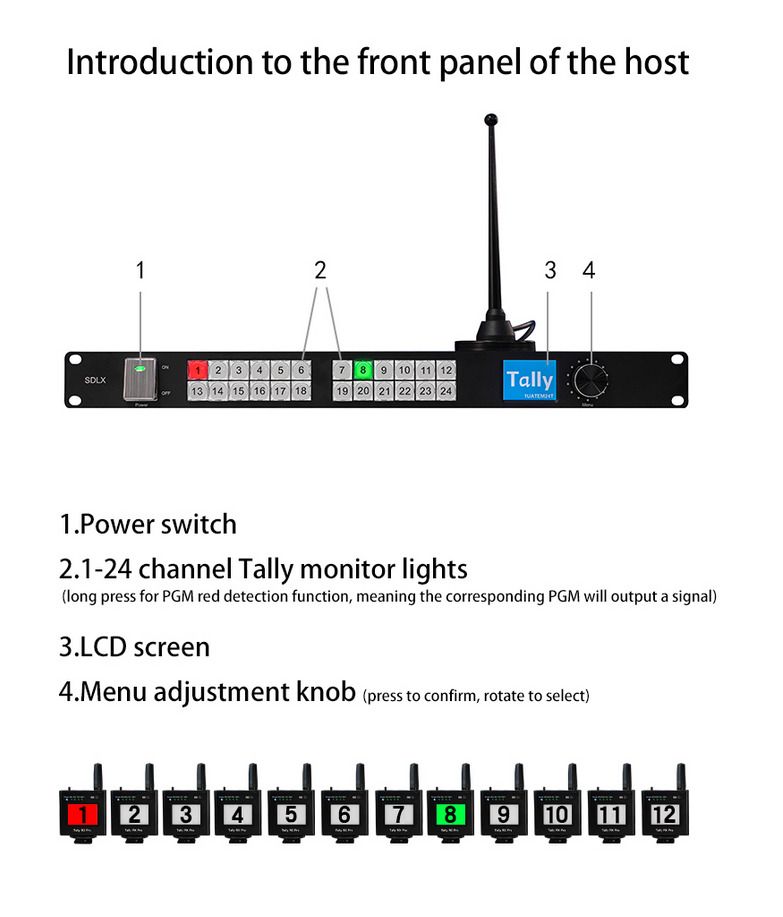

Front panel includes:

24 large tally indicators, visible from long distances
Touch buttons per channel for quick testing and control
Built-in test function: manually activate any channel without connection

🖥️ Smart Configuration

Equipped with a 2.0” LCD display, allowing easy access to:

IP address configuration
Channel mode switching (24 / 48 channels)
Multi-device network management
Switcher configuration (supports up to 4ME systems)

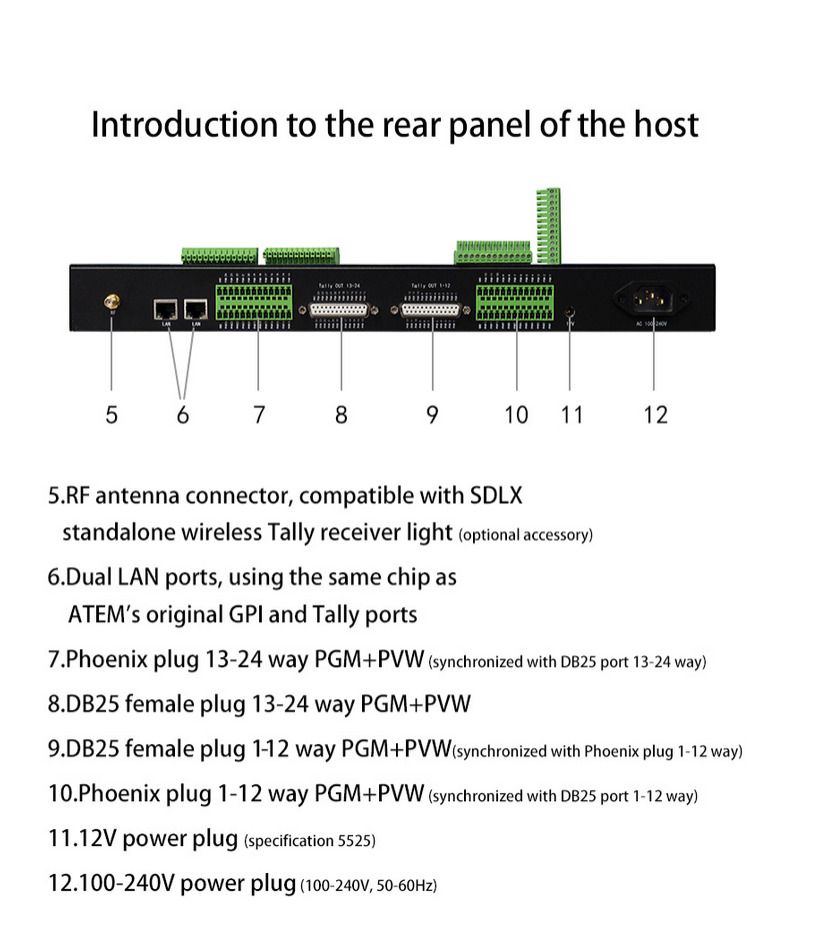

🔌 Connectivity & Power

Dual Ethernet ports, fully compatible with ATEM protocol
Original GPI and Tally interface chips for maximum stability
Wide power input:
- AC: 100V – 240V
- DC: 12V
Redundant power supply support for mission-critical environments

The Phoenix connector includes screw terminals for easy on-site wiring.

📡 Optional Wireless Functionality

Optional RF module enables:

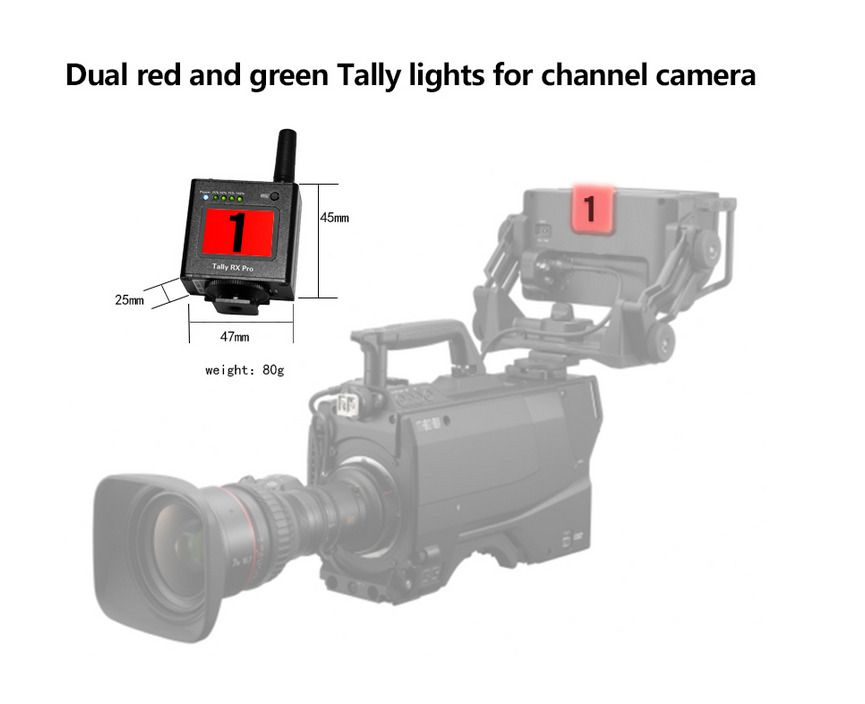

Integration with wireless tally lights
Greater flexibility for mobile and complex production setups

Ideal Applications

Broadcast studios
Live productions
OB vans / mobile units
Multi-camera setups

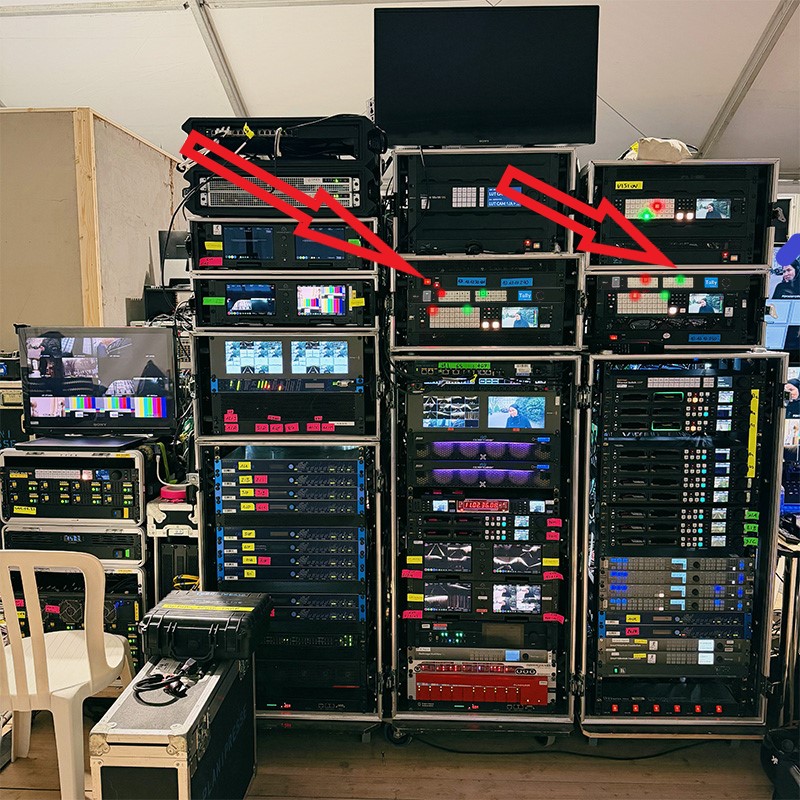

CCU-based professional camera systems
