Name: 4-Channel HDMI Capture Card
Brand: NVT360
SKU: CCH4/C
Price: 235.0 USD
Availability: InStock

Trusted by professionals worldwide. Real users across the U.S., Canada, Australia, Europe(Portugal, Sweden, France, Germany, Italy,Hungary etc.)and Latin America. Worldwide Shipping , Direct from Factory. Enjoy fast, reliable global delivery straight from our factory. We ship via DHL, FedEx, and UPS, with full tracking included. Estimated delivery time: 10–12 business days, with free shipping on all orders.

Open mobile app

Open in browser

Customer supportTechnical support response within 24 hours

Need help selecting the right equipment or integrating it into your existing AV production workflow? Our team provides personalized guidance, from technical specifications to system compatibility and real-world deployment. Orders are fulfilled directly from our manufacturing partners, via our certified manufacturing and logistics partners, ensuring fast delivery, secure packaging, and full compliance with international shipping regulations.

Port	Function
HDMI IN	4x HDMI inputs, up to 4096x2160@60Hz
HDMI OUT	4x HDMI outputs (loop-through of the inputs), connectable to monitors for preview
UVC OUT	1x Type-C UVC output port, carries all 4 channels' audio/video signals
Line Audio IN	Analog stereo line audio input (routed to Channel 1 via I2S), connectable to mixing consoles
POWER	PD fast charging, up to 100W; powered by phone or computer, can run briefly without external power
DC-5V OUT	Provides 5V/2A power output for external converters (e.g., SDI to HDMI)

Interface	Parameters
HDMI IN	4096x2160@60Hz YUV420 / 4096x2160@30Hz YUV444
HDMI OUT	4096x2160@60Hz YUV420 / 4096x2160@30Hz YUV444
Line Audio IN	Analog stereo to I2S input (connected to Channel 1)
UVC OUT	4 channels, USB Audio/Video compliant with UVC 1.0 protocol. Audio: default 48KHz/24bit stereo, 5.1CH supported
Connection	Type-C, USB 3.2 Gen 2x1 (10Gbps)
UVC OUT Video Formats	YUV422, MJPEG, RGB24, NV12
UVC OUT Resolutions	4096x2160@60Hz (MJPEG) / 3840x2160@30Hz (YUV420)
Power	PD fast-charging protocol (max 100W)
DC-5V OUT	5V/2A
OS Support	Windows XP/7/8/10/11, Android 5.0+, macOS
Dimensions	165mm x 82mm x 13mm (includes mounting holes with hot-shoe design)
Weight	220g
Operating Temp	-20°C ~ 50°C (operating), -20°C ~ 80°C (storage)
Model	HN-4-HDMI-C

Output Resolution	Format	Approx. Data Rate
1920x1080@60Hz	YUV422	3 Gb/s
1920x1080@60Hz	RGB24	4 Gb/s
1920x1080@60Hz	NV12	2 Gb/s
1920x1080@60Hz	MJPEG	150–200 Mb/s
4096x2160@25Hz	YUV422	5 Gb/s
3840x2160@30Hz	NV12	4 Gb/s
4096x2160@60Hz	MJPEG	600–800 Mb/s

Format	Supported Resolutions & Frame Rates
YUV422	800x600 @ 60/50/30/20/10Hz
RGB24	800x600 @ 60/50/30/20/10Hz
MJPEG	1920x1080 @ 120/60/50/30/20/10Hz · 1600x1200 @ 60/50/30/20/10Hz · 1360x768 @ 60/50/30/20/10Hz · 1280x1024 @ 60/50/30/20/10Hz · 1280x960 @ 60/50/30/20/10/6Hz · 1280x720 @ 60/50/30/20/10Hz · 1024x768 @ 60/50/30/20/10Hz · 800x600 @ 60/50/30/20/10Hz
NV12	3840x2160 @ 30/20/10Hz · 2560x1440 @ 60/50/30/20/10Hz · 1920x1080 @ 60/30/20/10/6Hz · 1280x720 @ 60/50/30/20/10Hz

Format	Supported Resolutions & Frame Rates
YUV422	1920x1080 @ 10/5Hz · 1600x1200 @ 10/5Hz · 1360x768 @ 15/8Hz · 1280x1024 @ 15/8Hz · 1280x960 @ 15/8Hz · 1280x720 @ 25/10Hz · 1024x768 @ 25/10Hz · 800x600 @ 30/20/10Hz · 720x576 @ 50/25/20/10Hz · 720x480 @ 60/30/20/10Hz · 640x480 @ 60/30/20/10Hz
MJPEG	1920x1080 @ 60/50/30/20/10Hz · 1600x1200 @ 60/50/30/20/10Hz · 1360x768 @ 60/50/30/20/10Hz · 1280x1024 @ 60/50/30/20/10Hz · 1280x960 @ 60/50/30/20/10Hz · 1280x720 @ 60/50/30/20/10Hz · 1024x768 @ 60/50/30/20/10Hz · 800x600 @ 60/50/30/20/10Hz · 720x576 @ 60/50/30/20/10Hz · 720x480 @ 60/50/30/20/10Hz · 640x480 @ 60/30/20/10Hz
NV12	1920x1080 @ 15/10/5Hz · 1280x720 @ 30/25/20/10Hz · 800x600 @ 60/50/30/20/10Hz

4-Channel HDMI Capture Card

4-Channel HDMI Capture Card

Model:CCH4

🔌 Plug & Play / No Drivers Required

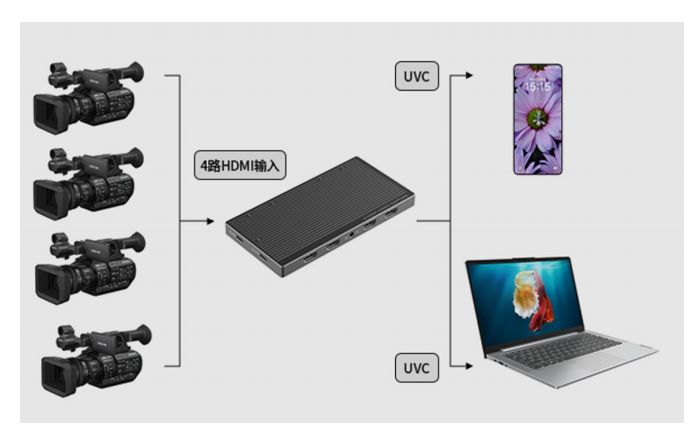

Real-Time Multi-Camera Switching

Ports & Connectivity

LED Indicators

Full Technical Specifications

Data Bandwidth Requirements (per UVC stream , multiply x4 for all 4 channels)

Supported Output Resolutions & Formats

Via USB 3.0

Via USB 2.0

📦 Package Contents

✅ Perfect For

Quick Specs Summary
