SW HS52 | 5-Channel HDMI/SDI Video Switcher with 5.5" Full HD Display

The SW HS52 is a powerful and versatile video switcher designed for live broadcasts, multi-camera productions, and professional events. Featuring a built-in 5.5-inch Full HD screen, it supports multiple input and output formats, offers direct recording, and allows remote control via web browser.

Key Features:

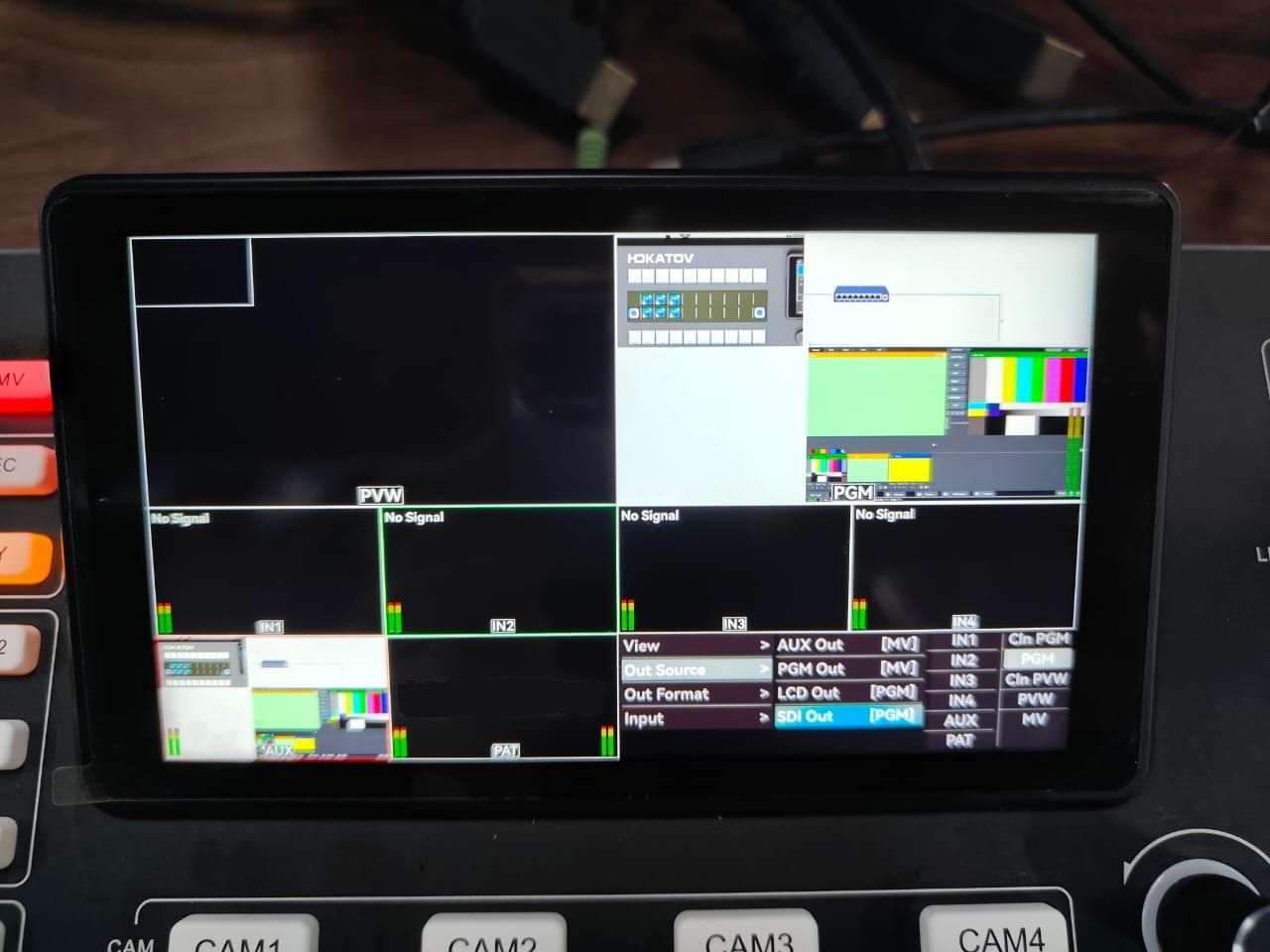

• Integrated 5.5" Full HD Screen: Monitor and direct your production directly from the device.
• 5 Video Inputs: Combine 4 HDMI or 4 SDI (selectable) plus 1 LAN or USB input for local media or NDI.
• 4K60 Input Support: HDMI IN1 and HDMI IN2 allow ultra-high-definition video for maximum quality.
• Multiple Outputs: 2 HDMI, 1 SDI, 1 USB, and 1 IP output for simultaneous streaming across various platforms.
• Live Streaming via RTMP: Broadcast in real time directly to social media or streaming platforms.
• UVC Compatibility: USB-C video capture for video call and streaming software.
• MP4 Video Recording: Save directly to a USB drive or SD card (FAT32, NTFS, exFAT formats).
• Effects and Transitions: 36 visual effects, PIP/POP modes, and customizable on-screen image adjustments.
• PTZ Camera Control: Compatible with VISCA over IP protocol and features an integrated 4D joystick.
• WEB Control: Access settings, updates, and operations remotely from any web browser.
• Multilanguage Operation: Interface available in English and Chinese.

Technical Specifications:

• Video Inputs: 4 HDMI or 4 SDI, 1 USB (local media) or 1 NDI.
• Video Outputs: 2 HDMI, 1 SDI, 1 USB (UVC), and 1 IP (RTMP streaming).
• Audio Inputs: 4 HDMI, 2 line-in 3.5mm, 2 XLR (with phantom power).
• Audio Outputs: 2 headphone monitoring outputs (3.5mm).
• Input Formats: 4K60, 4K30, 1080p60/50/30/25/24, 1080i60/50.
• Output Formats: 1080p60/50/30/25/24, 1080i60/50.
• Local Media File Formats: MP4 videos, PNG/JPG/BMP images.
• Network Connectivity: RJ45 10/100/1000 BaseT for IP streaming and WEB control.
• Additional Features: Tally support (DB-15), 16:9 horizontal mode and 9:16 vertical mode.

Perfect for:

• Live event producers
• Multimedia content creators
• Churches, schools, corporate environments, and audiovisual production companies

Turn your productions into professional experiences with the SW HS52!
