Features
 4K Ultra HD Output:
Using a new generation of SONY 1/1.8-inch high-quality CMOS, it can achieve maximum 4K60 ultra-high-definition resolution broadcast and image output, and even larger scene recording.

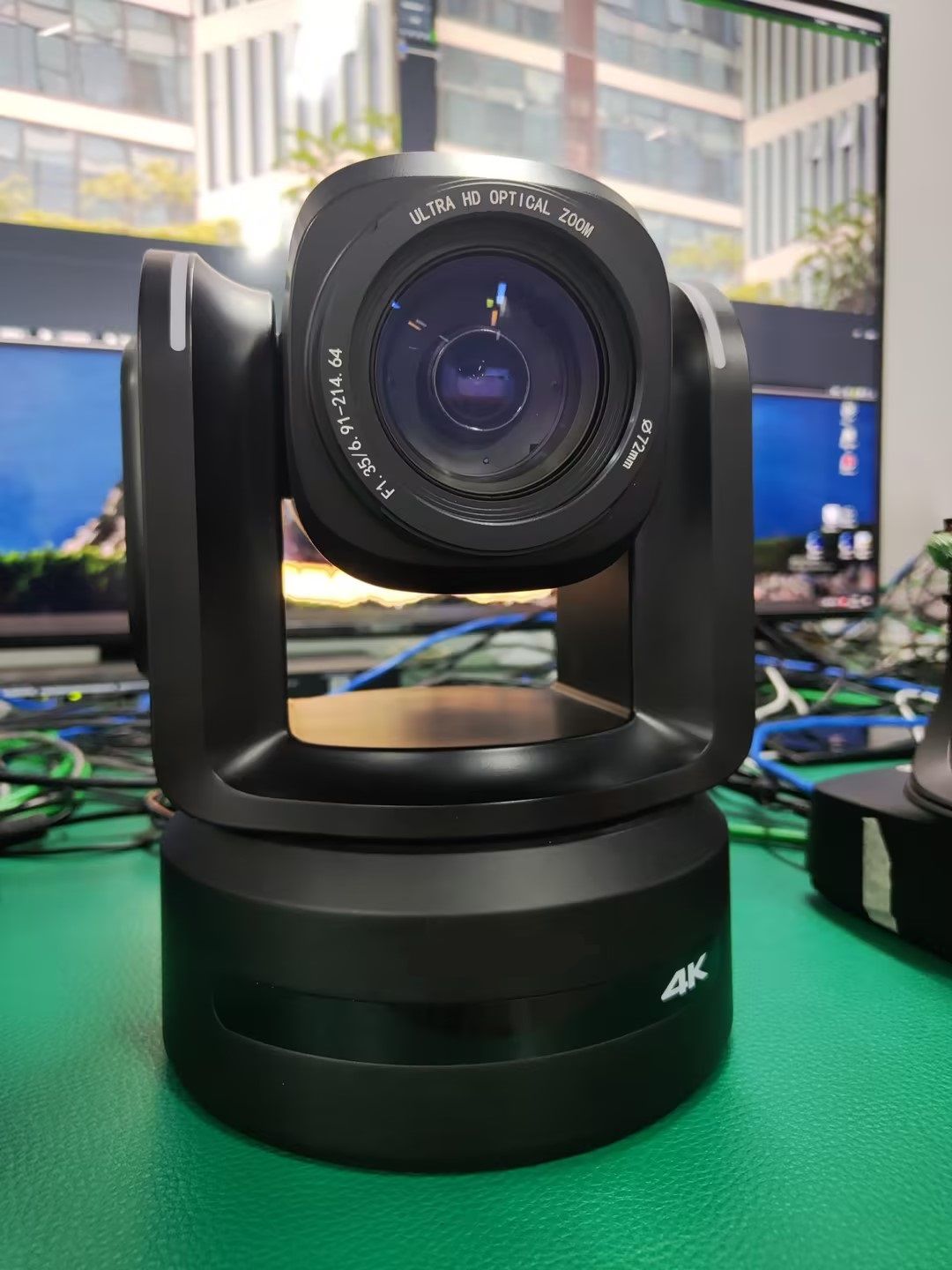

30X Optical Zoom Lens:
Equipped with a 30x ultra-high-definition optical lens and supports the mainstream horizontal viewing angle of 59°, can meet the needs of more scenes such as video conferencing in large auditoriums and blackboard writing in lecture theaters to restore true details.

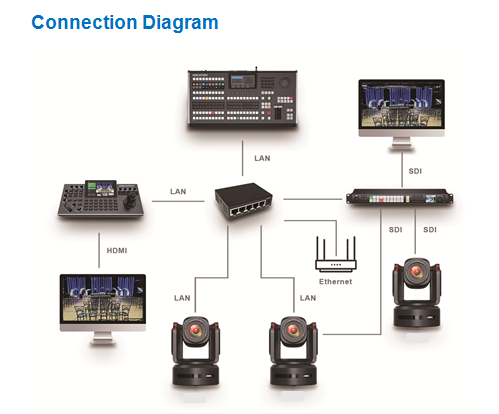

USB3.0+HDMI+LAN+SDI Full interfaces, Rich Application Scenarios:
A rich array of video output interfaces, HDMI+USB3.0 Type-B+12G-SDI+LAN can simultaneously output 4K60 resolution, while 3G-SDI supports 1080p60 resolution output. All interfaces can output simultaneously.
Low Light:
The new ultra-high signal-to-noise ratio CMOS image sensor can effectively reduce image noise under low-light conditions. At the same time, 2D & 3D digital noise reduction is applied

Features
 4K Ultra HD Output:
Using a new generation of SONY 1/1.8-inch high-quality CMOS, it can achieve maximum 4K60 ultra-high-definition resolution broadcast and image output, and even larger scene recording.
30X Optical Zoom Lens:
Equipped with a 30x ultra-high-definition optical lens and supports the mainstream horizontal viewing angle of 59°, can meet the needs of more scenes such as video conferencing in large auditoriums and blackboard writing in lecture theaters to restore true details.
USB3.0+HDMI+LAN+SDI Full interfaces, Rich Application Scenarios:
A rich array of video output interfaces, HDMI+USB3.0 Type-B+12G-SDI+LAN can simultaneously output 4K60 resolution, while 3G-SDI supports 1080p60 resolution output. All interfaces can output simultaneously.
Low Light:
The new ultra-high signal-to-noise ratio CMOS image sensor can effectively reduce image noise under low-light conditions. At the same time, 2D & 3D digital noise reduction is applied

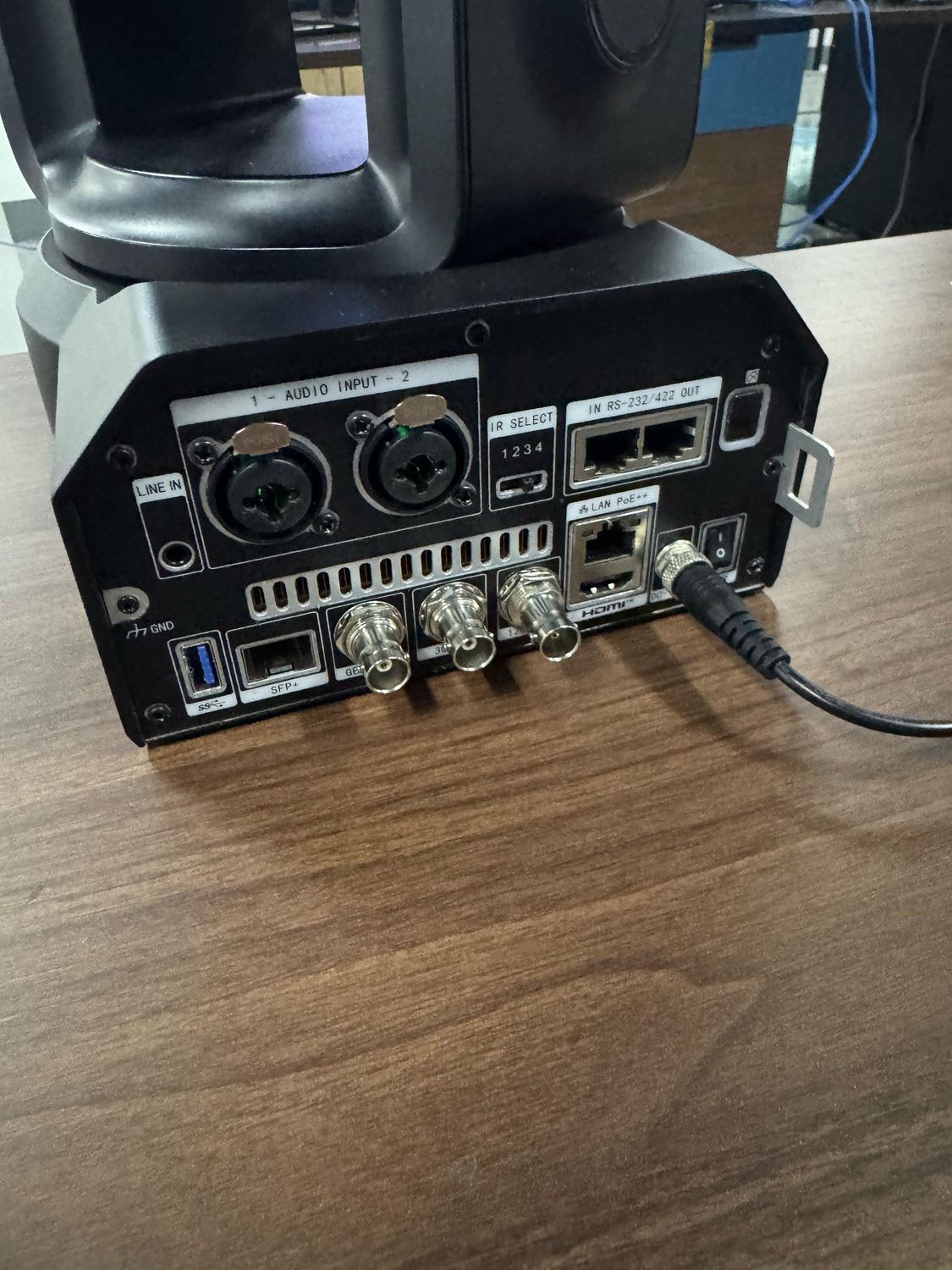

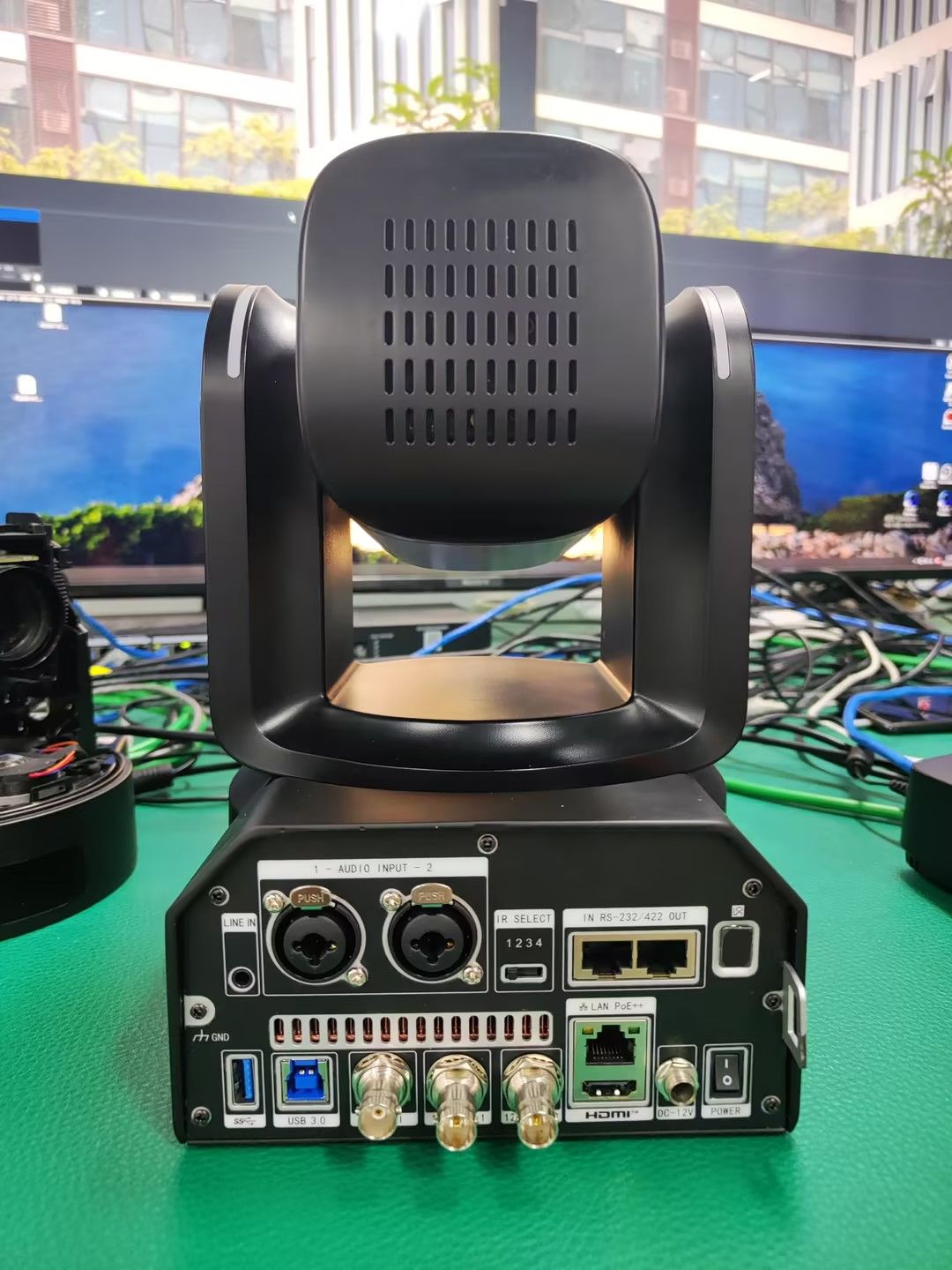

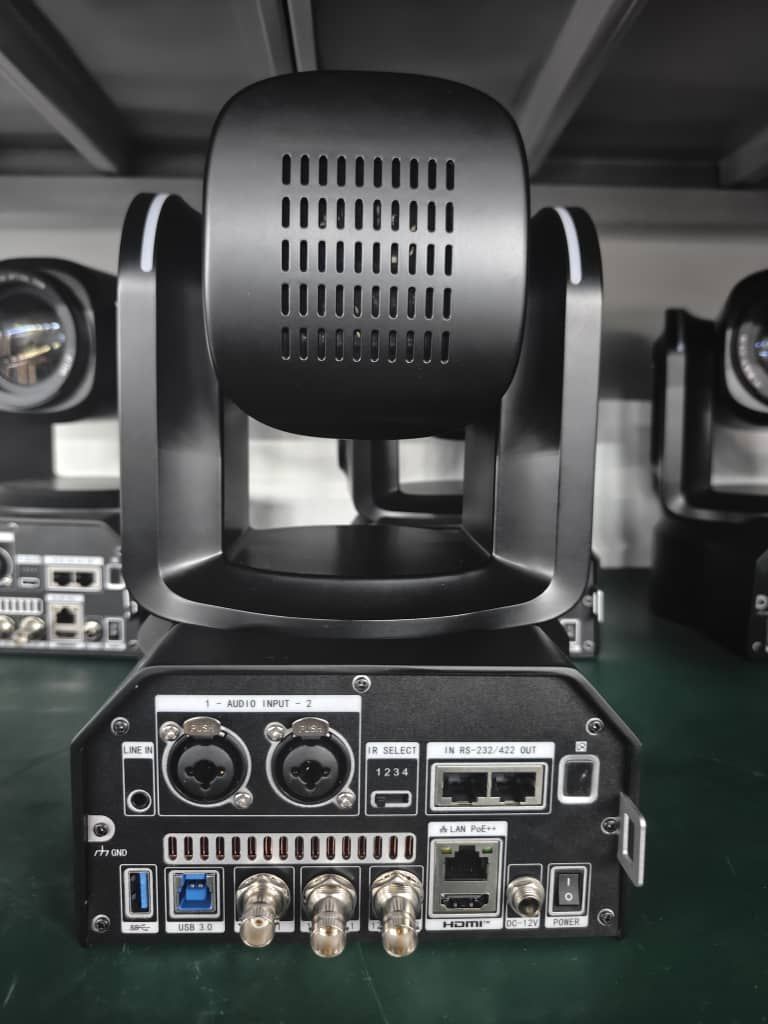

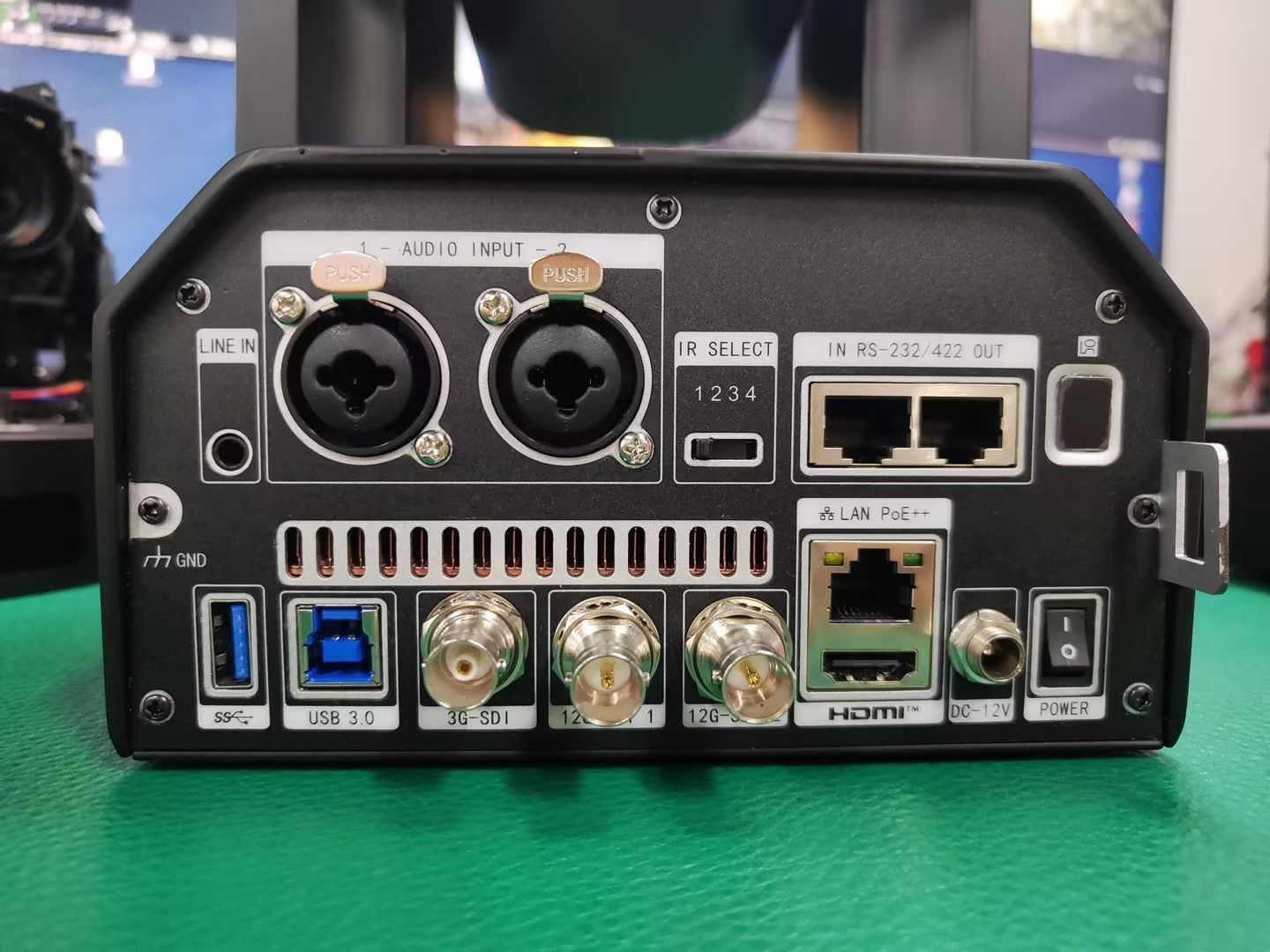

HDMI Interface 1 Line, HDMI：Version2.0
SDI Interface 1 Line, 3G-SDI
2 Line, 12G-SDI
USB Interface 1 Line, USB3.0, Type-A Socket
1 Line, UVC, Type-B Socket
Network Interface 1 Line, RJ45：1000M adaptive Ethernet port
Audio Interface 1 Line, Line In,3.5mm audio port
2 Line, AUDIO INPUT, XLR audio port
Serial Interface 1 Line, RS232 IN/OUT, up to 30 meters, VISCA/Pelco-D/Pelco-P protocol
1 Line, RS422, up to 1200 meters, VISCA/Pelco-D/Pelco-P protocol
Power Interface IEC 60130-10 Type A
General Specifications

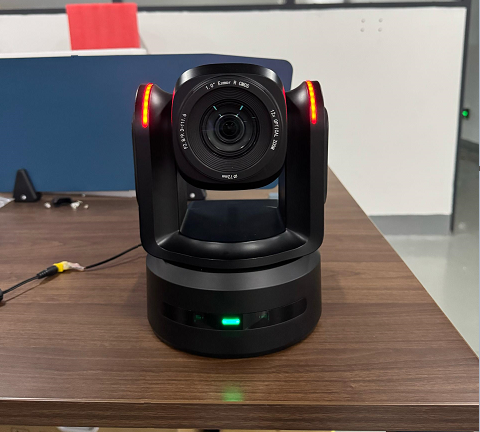

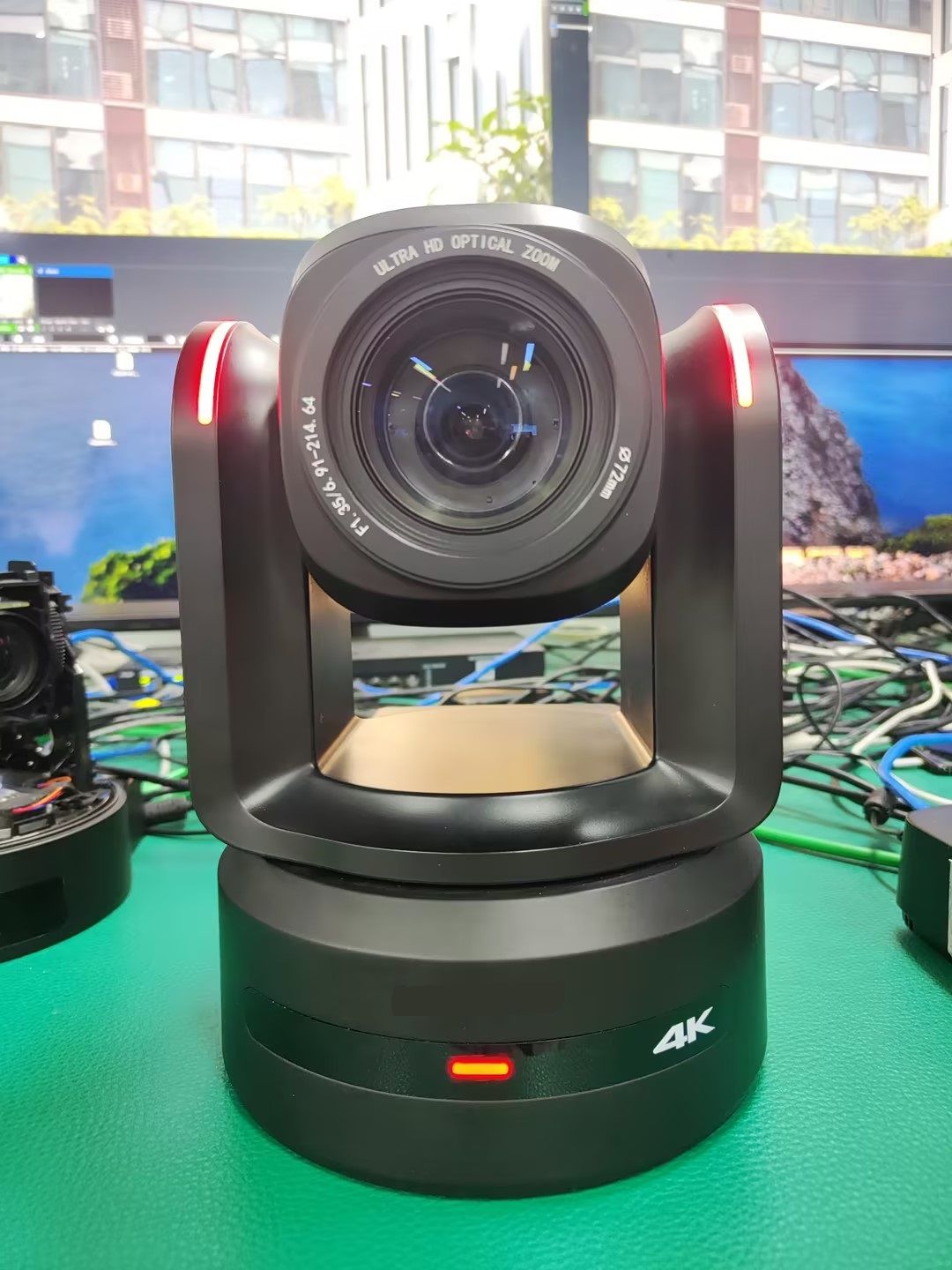

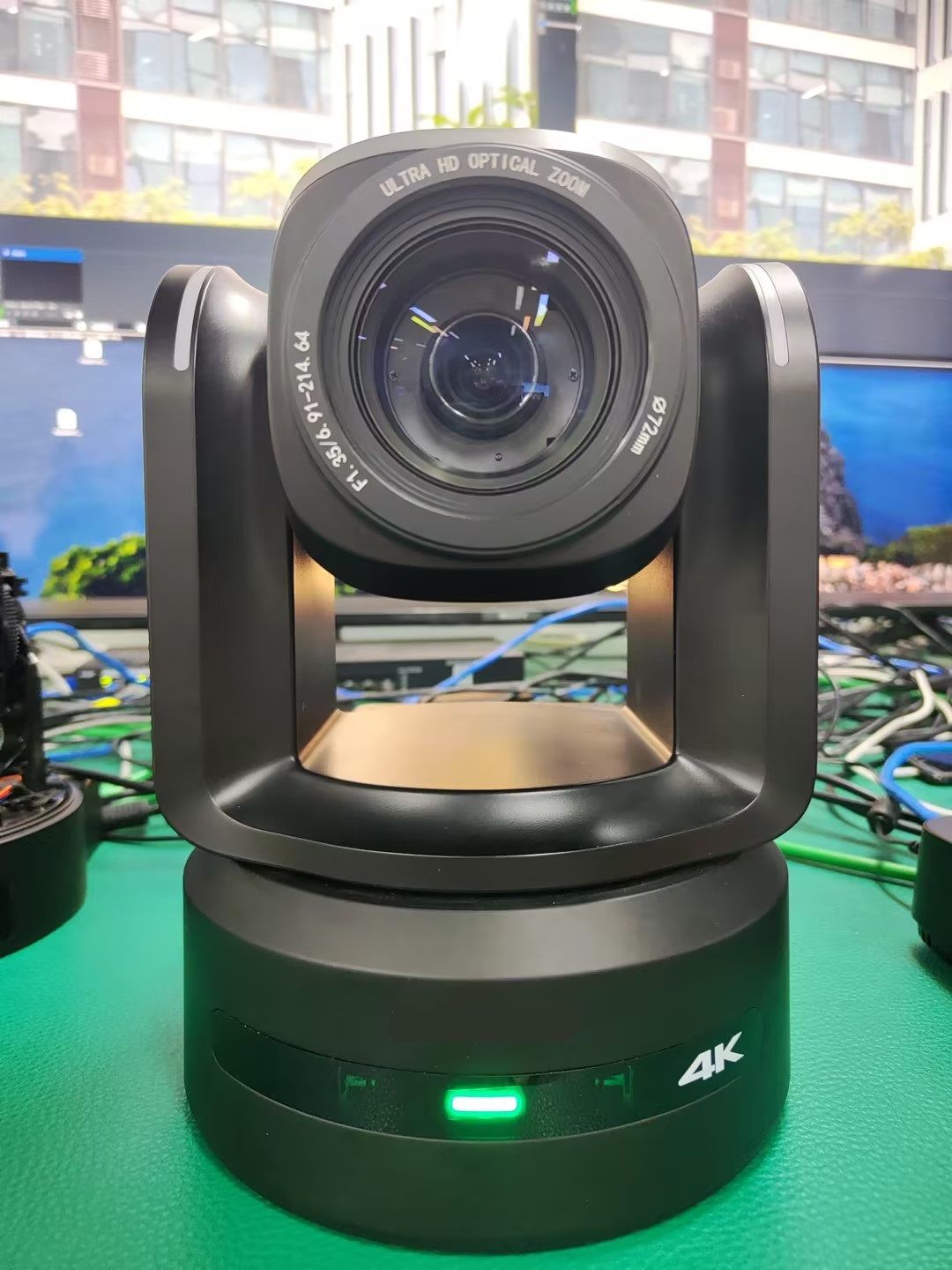

Tally Light Support
Input Voltage DC 12V
Input Current Max.1.3A
Power Consumption Max.15.6W

HDMI Interface 1 Line, HDMI：Version2.0
SDI Interface 1 Line, 3G-SDI
2 Line, 12G-SDI
USB Interface 1 Line, USB3.0, Type-A Socket
1 Line, UVC, Type-B Socket
Network Interface 1 Line, RJ45：1000M adaptive Ethernet port
Audio Interface 1 Line, Line In,3.5mm audio port
2 Line, AUDIO INPUT, XLR audio port
Serial Interface 1 Line, RS232 IN/OUT, up to 30 meters, VISCA/Pelco-D/Pelco-P protocol
1 Line, RS422, up to 1200 meters, VISCA/Pelco-D/Pelco-P protocol
Power Interface IEC 60130-10 Type A
General Specifications
Tally Light Support
Input Voltage DC 12V
Input Current Max.1.3A
Power Consumption Max.15.6W

HDMI Interface 1 Line, HDMI：Version2.0
SDI Interface 1 Line, 3G-SDI
2 Line, 12G-SDI
USB Interface 1 Line, USB3.0, Type-A Socket
1 Line, UVC, Type-B Socket
Network Interface 1 Line, RJ45：1000M adaptive Ethernet port
Audio Interface 1 Line, Line In,3.5mm audio port
2 Line, AUDIO INPUT, XLR audio port
Serial Interface 1 Line, RS232 IN/OUT, up to 30 meters, VISCA/Pelco-D/Pelco-P protocol
1 Line, RS422, up to 1200 meters, VISCA/Pelco-D/Pelco-P protocol
Power Interface IEC 60130-10 Type A
General Specifications
Tally Light Support
Input Voltage DC 12V
Input Current Max.1.3A
Power Consumption Max.15.6W

Image Parameters
Resolution HDMI: 4K60/59.94/50/30/29.97/25, 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50
12G-SDI: 4K60/59.94/50/30/29.97/25, 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50
3G-SDI: 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50
Image Sensor SONY 1/1.8 CMOS
Pixels 8.50 Megapixels, 8.29 Effective Megapixels
Scan Mode Line by line
Lens 30X Optical Zoom , f=6.91(W)~214.64mm(T), F1.35~F4.6
Digital Zoom 16X

Cámara PTZ 30KVN, Sensor 1/1.8",4K (12GSDI)

LAN
Protocol TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP, NDI®HX2（optional）, Free D
Video Compression H.264, H.265
Code Stream Main code stream*1, Sub code stream*1
Main Stream Resolution 3840*2160, 1920*1080, 1280*720
Sub Stream Resolution 640*480, 640*360, 352*288, 320*240, 176*144
Bit Rate Control VBR, CBR

Image Parameters
Resolution HDMI: 4K60/59.94/50/30/29.97/25, 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50
12G-SDI: 4K60/59.94/50/30/29.97/25, 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50
3G-SDI: 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50
Image Sensor SONY 1/1.8 CMOS
Pixels 8.50 Megapixels, 8.29 Effective Megapixels
Scan Mode Line by line
Lens 30X Optical Zoom , f=6.91(W)~214.64mm(T), F1.35~F4.6
Digital Zoom 16X

HDMI Interface 1 Line, HDMI：Version2.0
SDI Interface 1 Line, 3G-SDI
2 Line, 12G-SDI
USB Interface 1 Line, USB3.0, Type-A Socket
1 Line, UVC, Type-B Socket
Network Interface 1 Line, RJ45：1000M adaptive Ethernet port
Audio Interface 1 Line, Line In,3.5mm audio port
2 Line, AUDIO INPUT, XLR audio port
Serial Interface 1 Line, RS232 IN/OUT, up to 30 meters, VISCA/Pelco-D/Pelco-P protocol
1 Line, RS422, up to 1200 meters, VISCA/Pelco-D/Pelco-P protocol
Power Interface IEC 60130-10 Type A
General Specifications
Tally Light Support
Input Voltage DC 12V
Input Current Max.1.3A
Power Consumption Max.15.6W

LAN
Protocol TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP, NDI®HX2（optional）, Free D
Video Compression H.264, H.265
Code Stream Main code stream*1, Sub code stream*1
Main Stream Resolution 3840*2160, 1920*1080, 1280*720
Sub Stream Resolution 640*480, 640*360, 352*288, 320*240, 176*144
Bit Rate Control VBR, CBR

Cámara PTZ 30KVN, Sensor 1/1.8",4K (12GSDI)

HDMI Interface 1 Line, HDMI：Version2.0
SDI Interface 1 Line, 3G-SDI
2 Line, 12G-SDI
USB Interface 1 Line, USB3.0, Type-A Socket
1 Line, UVC, Type-B Socket
Network Interface 1 Line, RJ45：1000M adaptive Ethernet port
Audio Interface 1 Line, Line In,3.5mm audio port
2 Line, AUDIO INPUT, XLR audio port
Serial Interface 1 Line, RS232 IN/OUT, up to 30 meters, VISCA/Pelco-D/Pelco-P protocol
1 Line, RS422, up to 1200 meters, VISCA/Pelco-D/Pelco-P protocol
Power Interface IEC 60130-10 Type A
General Specifications
Tally Light Support
Input Voltage DC 12V
Input Current Max.1.3A
Power Consumption Max.15.6W

HDMI Interface 1 Line, HDMI：Version2.0
SDI Interface 1 Line, 3G-SDI
2 Line, 12G-SDI
USB Interface 1 Line, USB3.0, Type-A Socket
1 Line, UVC, Type-B Socket
Network Interface 1 Line, RJ45：1000M adaptive Ethernet port
Audio Interface 1 Line, Line In,3.5mm audio port
2 Line, AUDIO INPUT, XLR audio port
Serial Interface 1 Line, RS232 IN/OUT, up to 30 meters, VISCA/Pelco-D/Pelco-P protocol
1 Line, RS422, up to 1200 meters, VISCA/Pelco-D/Pelco-P protocol
Power Interface IEC 60130-10 Type A
General Specifications
Tally Light Support
Input Voltage DC 12V
Input Current Max.1.3A
Power Consumption Max.15.6W

Features
 4K Ultra HD Output:
Using a new generation of SONY 1/1.8-inch high-quality CMOS, it can achieve maximum 4K60 ultra-high-definition resolution broadcast and image output, and even larger scene recording.
30X Optical Zoom Lens:
Equipped with a 30x ultra-high-definition optical lens and supports the mainstream horizontal viewing angle of 59°, can meet the needs of more scenes such as video conferencing in large auditoriums and blackboard writing in lecture theaters to restore true details.
USB3.0+HDMI+LAN+SDI Full interfaces, Rich Application Scenarios:
A rich array of video output interfaces, HDMI+USB3.0 Type-B+12G-SDI+LAN can simultaneously output 4K60 resolution, while 3G-SDI supports 1080p60 resolution output. All interfaces can output simultaneously.
Low Light:
The new ultra-high signal-to-noise ratio CMOS image sensor can effectively reduce image noise under low-light conditions. At the same time, 2D & 3D digital noise reduction is applied

+13

+12

+11

+10

+9

+8

+7

+6

+5

+4

+3

+2

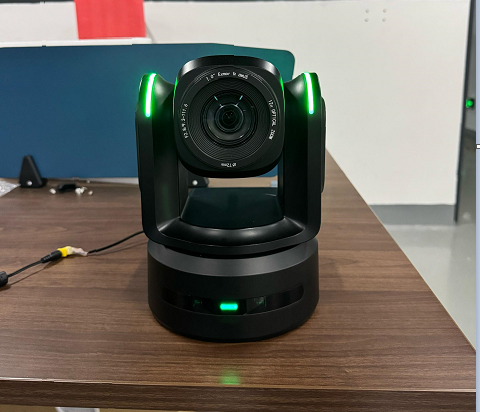

Cámara PTZ 30KVN, Sensor 1/1.8",4K (12GSDI)

USD2 495

Price per unit: USD2 495

In stock

Quantity:

1

Share this product with your friends

Share Share Pin it

Cámara PTZ 30KVN, Sensor 1/1.8",4K (12GSDI)

Product Details

Brand: i360

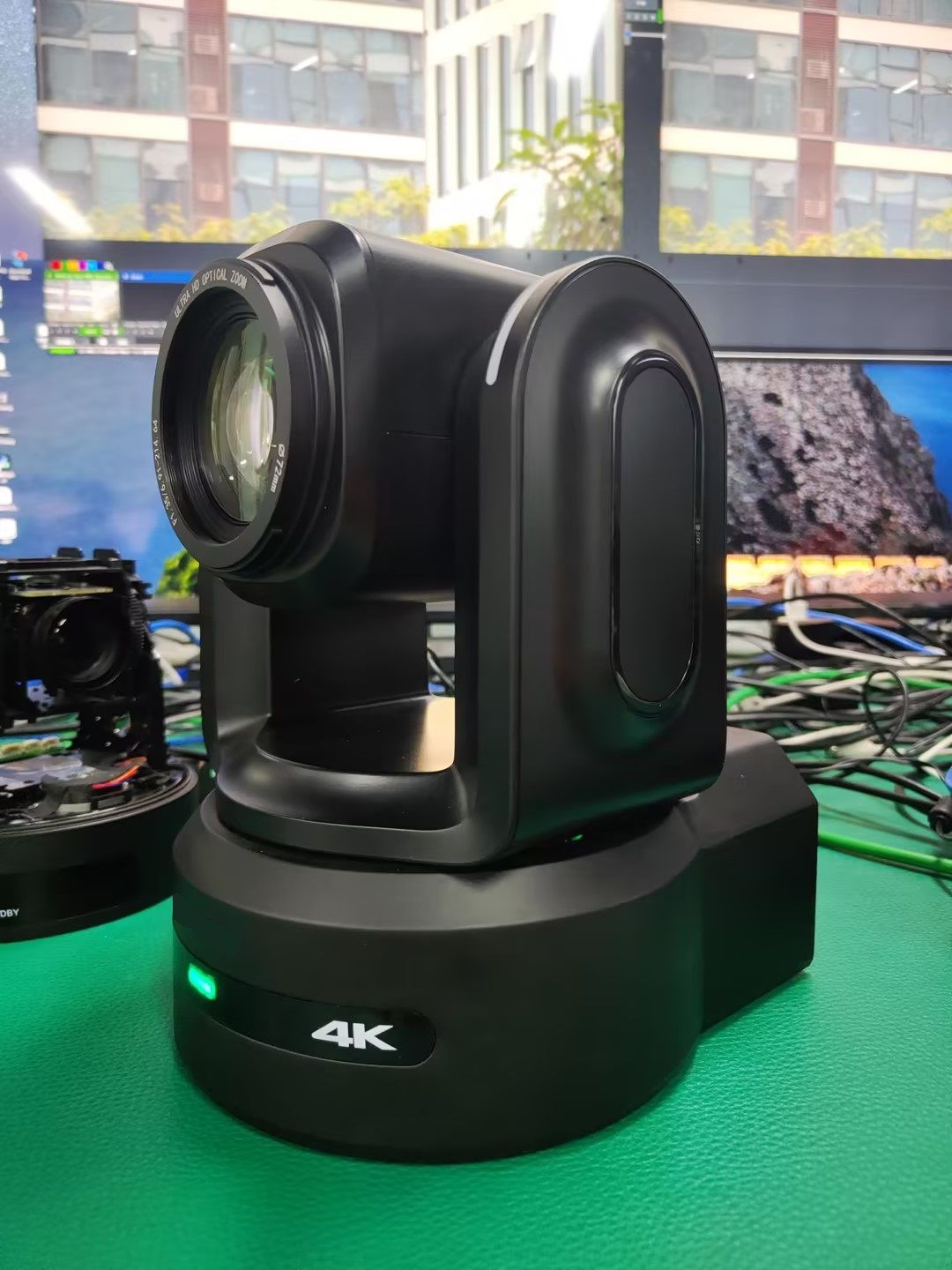

PTZ 30KVN – 4K 30X PTZ Camera for Production and Streaming

📌 Professional 4K UHD Quality

✔ Sony 1/1.8” CMOS Sensor, 4K at 60fps

✔ 30X Optical Zoom with 59° Viewing Angle

📌 Versatile Connectivity

✔ Outputs: 12G-SDI ×2, 3G-SDI, HDMI 2.0, USB 3.0, LAN

✔ Compatible with NDI®|HX, SRT, RTMP, RTSP, ONVIF, FreeD

📌 Smart Features

✔ Auto Framing and AI Tracking for Face Tracking

✔ Gesture Control for Zoom and Lens Shift

📌 Superior Performance

✔ Excellent low-light performance with 2D/3D noise reduction

✔ POE+ Support for Simplified Installation

✔ Remote Control via VISCA, VISCA over IP, PELCO P/D

🎯 Ideal for: Professional video production, streaming, conferences and education.
